MY 100P Pump Type Gas Detector MST

Pump type voice gas detector (hereinafter referred to as detector) is a kind of safety equipment which can continuously use to detect the concentration of leaked gas. It adopts advanced integrated circuit technology, 32-bit embedded microcomputer chip control and imported 16 bit ultra-high resolution ADC detection special chip. The calculation speed is faster and the test data is more accurate and stable. The detector uses a 2.4-inch high-definition LCD color screen,through Chinese and English interface and Chinese and English voice prompts,users can quickly understand the product, easy to use and maintain; the detector uses aluminum alloy shell, USB charging interface, built-in 2900ma large capacity lithium battery and high-end vacuum suction pump, high-quality imported gas sensor, with excellent sensitivity and excellent repeatability; P PM and Mg / m3 range unit switch with one key, fast reaction speed, strong anti-interference ability,stable and reliable performance, in the domestic leading level. The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, archaeology and other industries and places that need safety monitoring of toxic, harmful and explosion-proof. The detector can effectively predict the concentration of dangerous gas alarm, ensure the safety of the staff is not threatened, and the production equipment is not damaged.

Model
MY 100P
Click to consult
  • Features and benefits
  • Technical parameters
  • Accessories

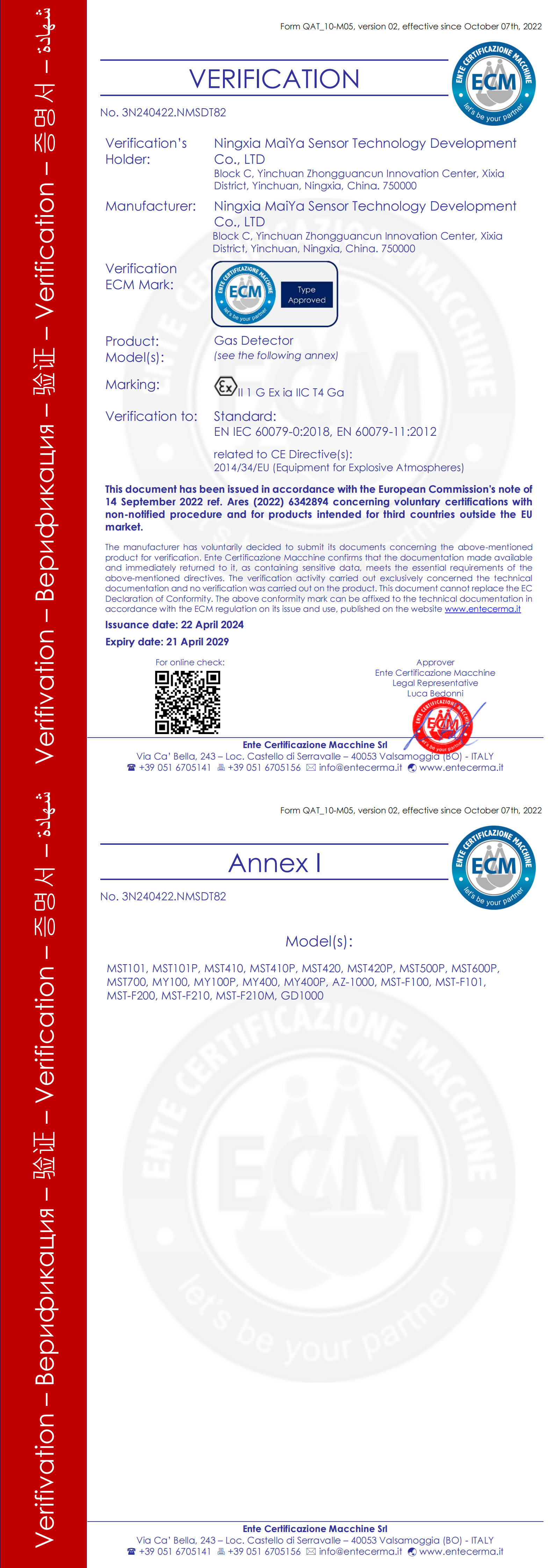

  • Certificate

Intrinsically safe circuit design, safe and reliable

Triple alarm prompt of sound, light and vibration

Beautiful appearance, convenient operation, accurate measurement, strong and durable

2.4-inch ultra-high definition liquid crystal color screen, perfectly presentingvarious gas detection indicators

16 bit data acquisition chip + 32-bit nano microprocessor, with higher resolution and faster reaction speed

High strength aluminum alloy shell, resistant to acid, alkali, cold, heat, impact and flame

Imported gas sensor with original packaging, high precision, strong stability, low error rate and good linearity

The customer can set the high and low alarm value, alarm prompt switch andother functions as required

2900ma large capacity lithium battery, electrochemical sensor can work continuously for more than 20 hours

One key switch between ppm and Mg / m3 measuring range unit, simple and clear

Micro USB design, compatible with most Android mobile phone chargers and chargers in the market

Chinese and English display interface, Chinese and English real person voice prompt. Applicable to all people

Support curve drawing, convenient to observe the periodic state of gas concentration





Alarm mode

Sound, light, vibration

working
temperature

-20℃~+50℃(Special requirements to be customized)

Working
humidity

≤95%RHnon-condensing

Working
pressure

-30kPa~200kPa

Appearance
size

130x63×36mm(LxWxH)

weight

About500g

Detection
mode

Pump suction type

Protection
level

IP66

Pump flow
rate

300-500CC/Min

Texture of
material

Aluminum alloy; strong, wear-resistant and corrosion-resistant

Executive
standard

GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010

data storage

4000 alarm records

Charging
voltage

DC 5V

voltage

3.7VDC(Built in 2900ma rechargeable polymer power supply)




USB charger(DC 5V),Data line ,Instructions ,Certificate
